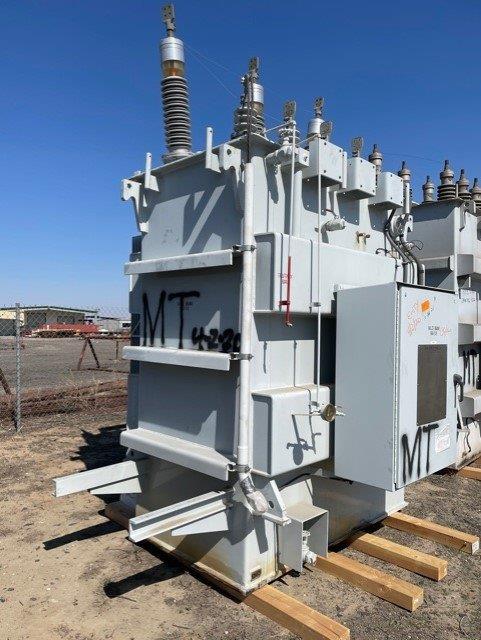

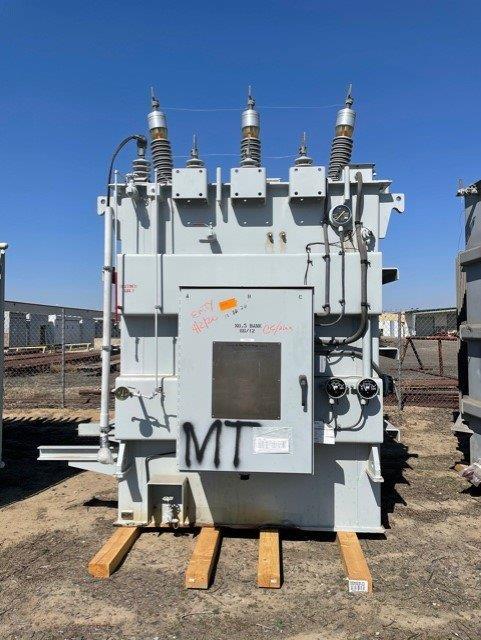

2000/2500 KVA Delta Star Substation Oil Transformer

RESA provides a large stock of 2000/2500 KVA Delta Star Substation Oil Transformer replacement parts.

2000/2500 KVA Delta Star Substation Oil Transformer available as-is or remanufactured.

Not the Transformer You Need?

Get Custom Transformer Quote

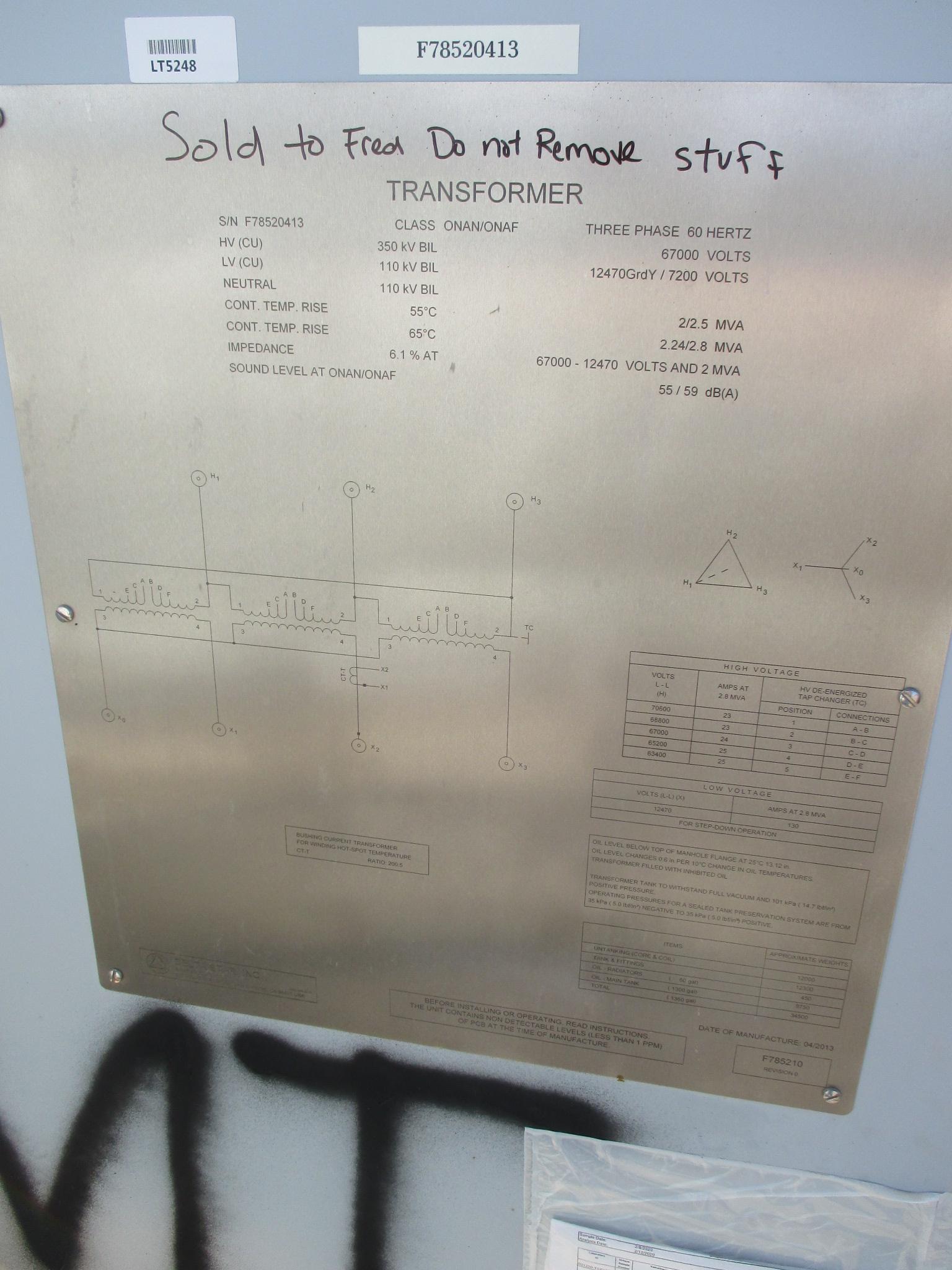

Power Ratings

KVA Ratings

KVA Cooling Temp
2000/2500 ONAN/ONAF 55
2240/2800 ONAN/ONAF 65
Frequency: 60
Impedance: 6.1

Primary Side Design Specifications

Basic Impulse Level: 350KV
Winding Material: Copper
Phase Bushing Location: Top Center

Primary Side Windings

Voltage Config Taps
67000 Delta
V
63400
65200
67000
68800
70600

Secondary Side Design Specifications

Basic Impulse Level: 110KV
Winding Material: Copper
Phase Bushing Location: Top Center

Secondary Side Windings

Voltage Config
12470GrdY/7200 Wye

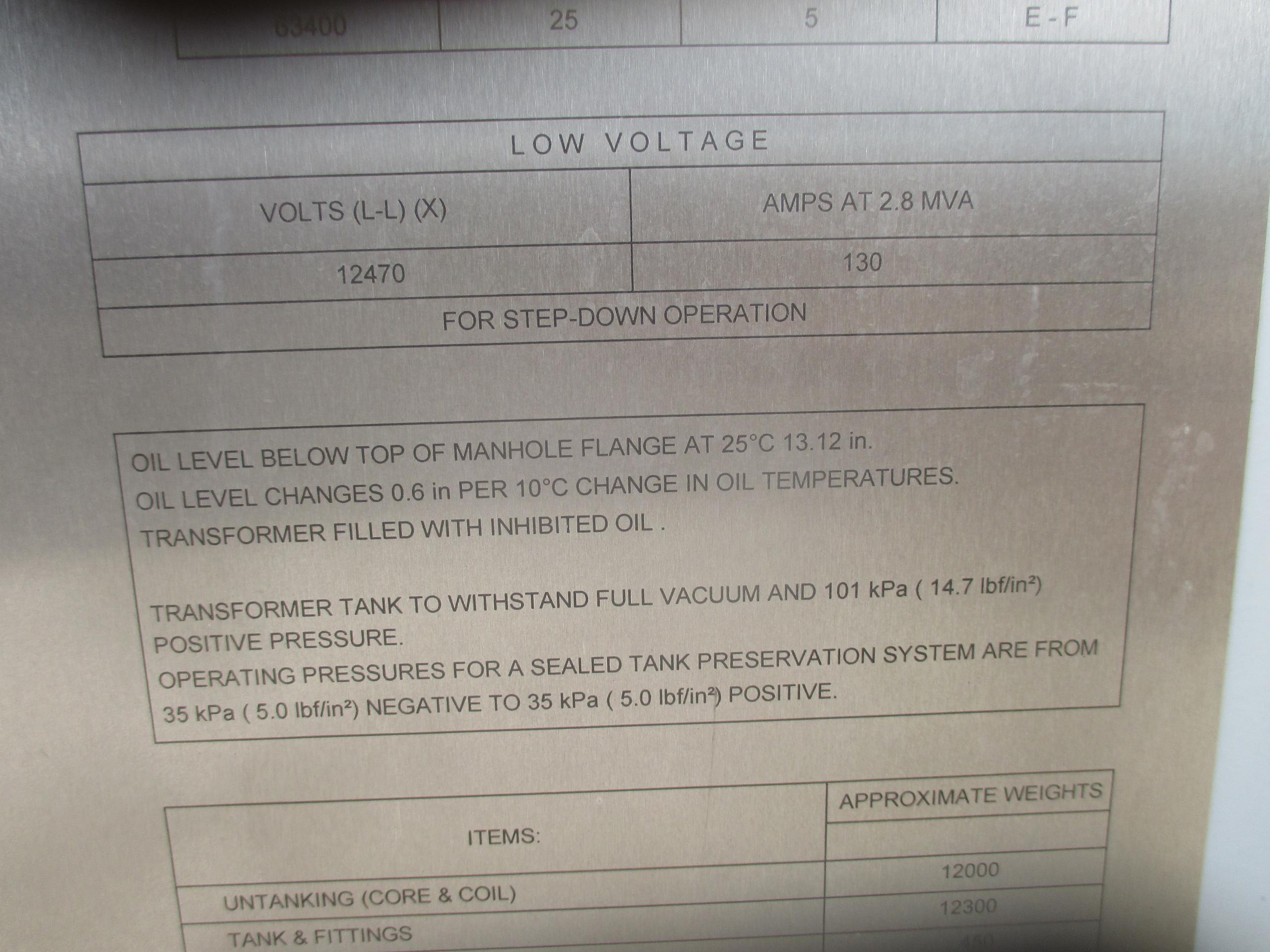

Enclosure

Enclosure Type: Outdoor
Color: Gray
Coolant Type: Mineral Oil

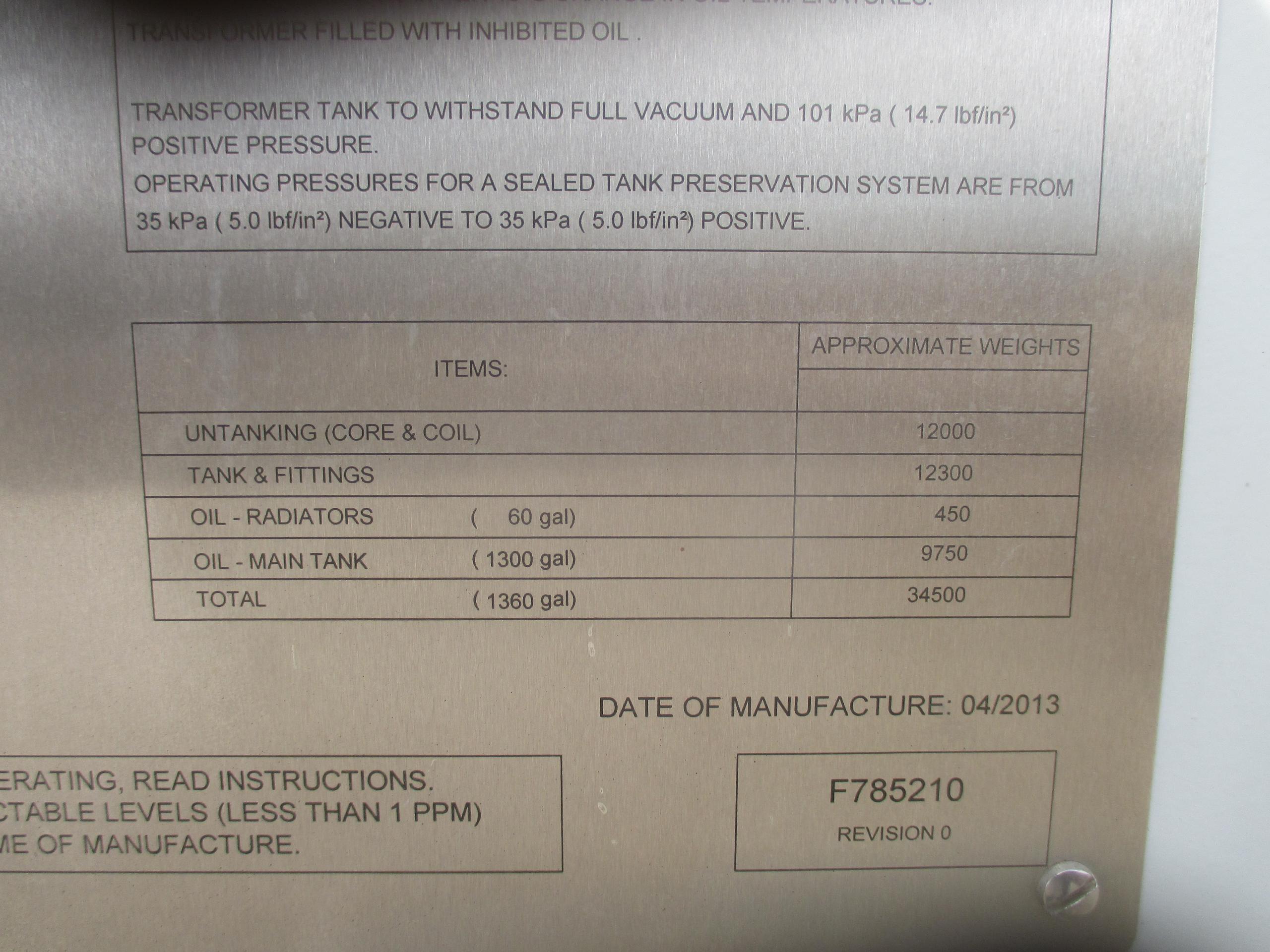

Coolant Volume: 1360
Coolant Weight: 10200
Coil Weight: 12000
Tank/Fittings Weight: 12300
Total Weight: 34500

Ask an expert

Resa Experts Can Help

Our experts can help.

800-996-9975

[email protected]

Request A Quote For This Product

Summary

The 2000/2500 KVA Delta Star Substation Oil Transformer from RESA Power

All Delta Star transformers can be purchased as remanufactured to factory standards (please see Delta Star Transformer factory remanufacturing specification). You can also order your 2000/2500 KVA Delta Star Substation Oil Transformer configured to your specifications. We also carry a large stock of replacement parts for the 2000/2500 KVA Delta Star Substation Oil Transformer. Contact one of our sales consultants today.
