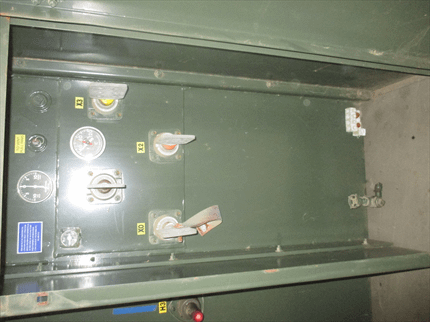

1000 KVA Eaton Pad Mount Oil Transformer

RESA provides a large stock of 1000 KVA Eaton Pad Mount Oil Transformer replacement parts.

1000 KVA Eaton Pad Mount Oil Transformer available as-is or remanufactured.

Not the Transformer You Need?

Get Custom Transformer Quote

Power Ratings

KVA Ratings

KVA Cooling Temp
1000 OA 65
Frequency: 60
Phase: 3Ø
Impedance: 5.63

Primary Side Design Specifications

Basic Impulse Level: 95KV
Winding Material: Aluminum
Bushing Style: Dead Front Radial Feed

Primary Side Windings

Voltage Config Taps
12000 Delta
V
126
11400
11700
12000
12300

Secondary Side Design Specifications

Basic Impulse Level: 30KV
Winding Material: Aluminum
Bushing Style: Live Front Radial Feed

Secondary Side Windings

Voltage Config
480Y/277 Wye

Enclosure

Enclosure Type: Outdoor
Color: Green
Coolant Type: Mineral Oil
Coolant Volume: 258
Coolant Weight: 1900
Coil Weight: 2615
Total Weight: 6980

Ask an expert

Resa Experts Can Help

Our experts can help.

800-996-9975

[email protected]

Request A Quote For This Product

Summary

The 1000 KVA Eaton Pad Mount Oil Transformer from RESA Power

All Eaton / Cutler-Hammer / Westinghouse transformers can be purchased as remanufactured to factory standards (please see Eaton / Cutler-Hammer / Westinghouse Transformer factory remanufacturing specification). You can also order your 1000 KVA Eaton Pad Mount Oil Transformer configured to your specifications. We also carry a large stock of replacement parts for the 1000 KVA Eaton Pad Mount Oil Transformer. Contact one of our sales consultants today.
